EASYCUTTER
EASYCUTTER
Die schlanken Einstiegsgeräte für Heimwerker.
Compact table unit for cutting all standard insulating and insulating panels made of styrodur, polystyrene foam and polystyrene foam.
- For all usual plate sizes
- 200 Watt
- Base plate made of glued laminated plywood
Compact table unit for cutting all standard insulating and insulating panels made of styrodur, polystyrene foam and polystyrene foam.
- For all usual plate sizes
- 200 Watt
- Base plate made of glued laminated plywood
PRODUCT VERSIONS
- In cutting lengths of 1,070 mm or 1,350 mm
- Optionally with base and scaffold bracket
CUT VARIANTS
- straight cut, surface cut (separating cut), two-step cut
- miter cut, angular cut, angular cut with miter, two-step cut with miter
- concave cut, cuts for window reveals
PRODUCT VERSIONS
- In cutting lengths of 1,070 mm or 1,350 mm
- Optionally with base and scaffold bracket
CUT VARIANTS
- straight cut, surface cut (separating cut), two-step cut
- miter cut, angular cut, angular cut with miter, two-step cut with miter
- concave cut, cuts for window reveals
EQUIPMENT
Rafter cuts The corner and rafter cutter is ideal for use in roof insulation with rigid foam panels.
Stable at minimum weight
Integrated scaffold bracket
Wide slab support surfaceAREAS OF APPLICATION
- wall insulation
- flat- and pitched roof insulation
- in between rafter insulation
ADVANTAGES
- Thanks to its aluminum construction, the Styrofoam cutter is light and corrosion resistant.
- Equipped with various scales and stop tabs for precise cuts. This eliminates the time-consuming marking of the insulation boards.
- Thanks to the lockable wire height, depth limiters, riders and stops, any number of plates can be produced with exactly the same dimensions.
- All guide rails are ball-bearing, for a smooth cut through hard foam.
EQUIPMENT
Rafter cuts The corner and rafter cutter is ideal for use in roof insulation with rigid foam panels.
Stable at minimum weightIntegrated scaffold bracketWide slab support surfaceAREAS OF APPLICATION
- wall insulation
- flat- and pitched roof insulation
- in between rafter insulation
ADVANTAGES
- Thanks to its aluminum construction, the Styrofoam cutter is light and corrosion resistant.
- Equipped with various scales and stop tabs for precise cuts. This eliminates the time-consuming marking of the insulation boards.
- Thanks to the lockable wire height, depth limiters, riders and stops, any number of plates can be produced with exactly the same dimensions.
- All guide rails are ball-bearing, for a smooth cut through hard foam.
TECHNICAL DATA
| cut length | 1350 mm |
| cut depth | 330 mm |
| slab support surface | both sides 1.000 mm |
| ruler | Millimeter graduation, adjustable with stop tab |
| stand (optionally) | optionally with integrated, height and width adjustable |
| Transformer and / or battery | 220 – 230 V / 50-60 Hz / 37 V, 160 VA / IP 68. Absolutely waterproof. Upgradeable to the battery operation. |
| plug | Connection to the transformer via splash-proof XLR industrial plug |
| material | Welded and powder-coated aluminum / laminated wood glued together |
| angle adjustment | 15-90 degree |
| weight | 9,8 kg |
| dimensions | 120 mm x 250 mm x 1.400 mm (model I) / 120 mm x 270 mm x 1.700 mm (model II) |
TECHNICAL DATA
| cut length | 1350 mm |
| cut depth | 330 mm |
| slab support surface | both sides 1.000 mm |
| ruler | Millimeter graduation, adjustable with stop tab |
| stand (optionally) | optionally with integrated, height and width adjustable |
| Transformer and / or battery | 220 – 230 V / 50-60 Hz / 37 V, 160 VA / IP 68. Absolutely waterproof. Upgradeable to the battery operation. |
| plug | Connection to the transformer via splash-proof XLR industrial plug |
| material | Welded and powder-coated aluminum / laminated wood glued together |
| angle adjustment | 15-90 degree |
| weight | 9,8 kg |
| dimensions | 120 mm x 250 mm x 1.400 mm (model I) / 120 mm x 270 mm x 1.700 mm (model II) |
HOT WIRE CUTTER: ACCESSORIES AND SYSTEM PRODUCTS
Accessories
Consumables
Complementary products
Similar products
HOT WIRE CUTTER: ACCESSORIES AND SYSTEM PRODUCTS

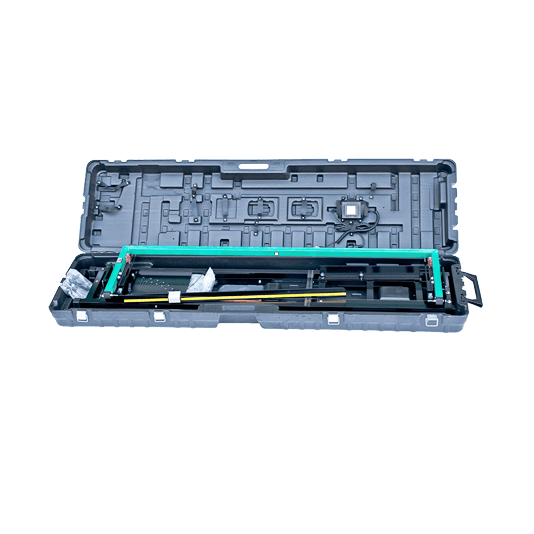

Accessories optional accessories, transport cases, foot switches and spare parts. more about the product

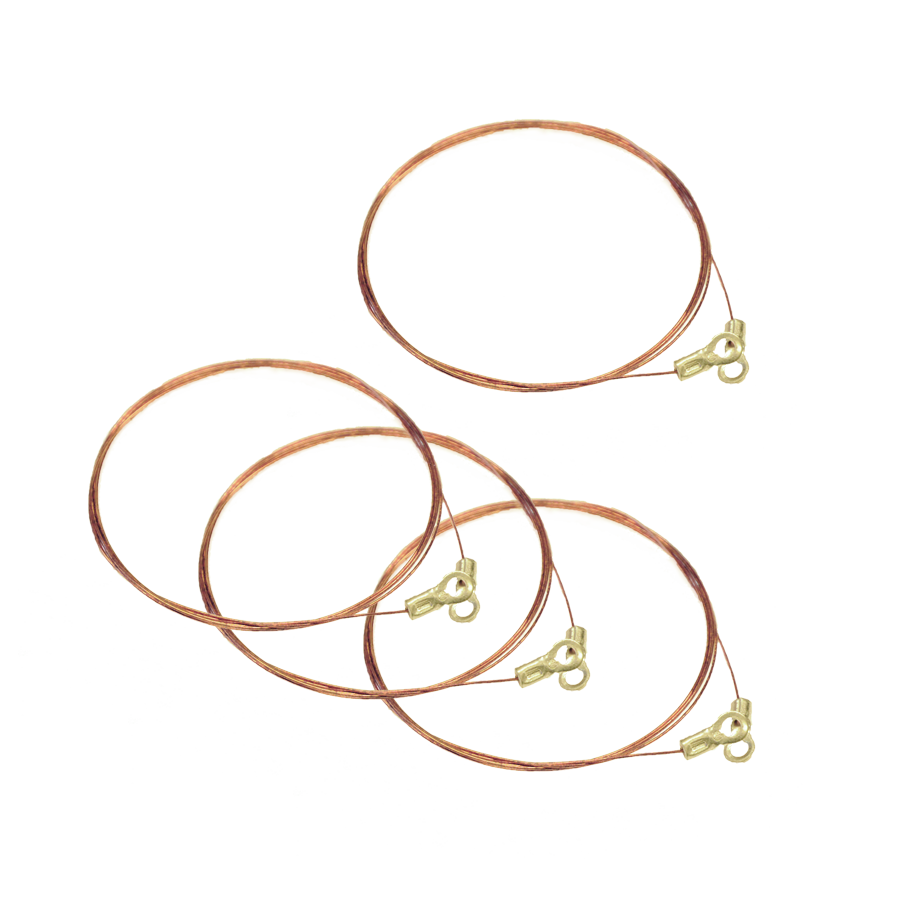

Consumables The hot wire foam cutter is equipped with a special corrosion- and heat-resistant conductor wire, made of a nickel-chromium-copper alloy. more about the product

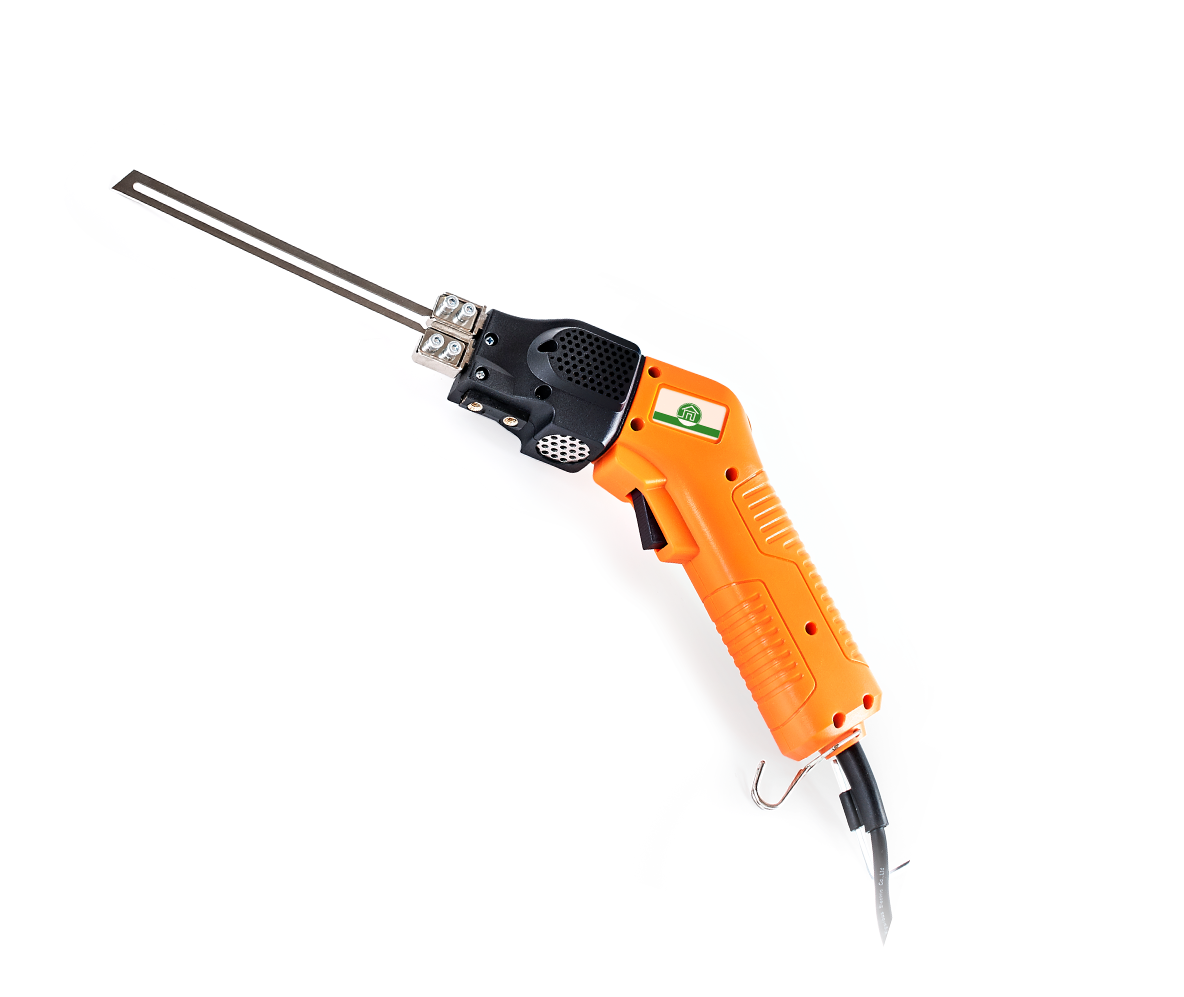

Complementary products The Styrocutter – a hand-held foam cutter with a blade, is the perfect complement to the large hot wire foam cutters and ideal for detailed work. more about the product
Similar products The Alucutter Profi – our bestseller among the professional hot wire foam cutting machines. more about the product
