ALUCUTTER 3014

The semi-professional styrofoam cutter for cutting hard foam and polystyrene panels.

ALUCUTTER 3014

The semi-professional styrofoam cutter for cutting hard foam and polystyrene panels.



Easily carried up the jobsite, this lightweight device ranks among simple craftsmanship tools such as the Easycutter and professional machines – Alucutter Profi and PREMIUM.

  • Lightweight and sturdy
  • Optimal equipment, ideal for the semi-professional area
  • Suitable for all commercially available rigid foams





Easily carried up the jobsite, this lightweight device ranks among simple craftsmanship tools such as the Easycutter and professional machines – Alucutter Profi and PREMIUM.

  • Lightweight and sturdy
  • Optimal equipment, ideal for the semi-professional area
  • Suitable for all commercially available rigid foams





PRODUCT VERSIONS

  • Compact and standardized product with cutting length 1350 mm and cutting depth 330 mm.
  • With integrated scaffold bracket.
  • The device is electrically wired as standard and can optionally be upgraded with a rechargeable battery.

CUT VARIANTS

  • Straight cut, surface cut (separating cut), two-step cut
  • Miter cut, bevel cut, miter bevel cut, two-step cut with miter
  • Concave cut, cuts for window reveals

For slope cutting cuts (wedges) and rafter cuts, switch to our professional polystyrene cutters Alucutter Profi, Premium and Champion Cutter

PRODUCT VERSIONS

  • Compact and standardized product with cutting length 1350 mm and cutting depth 330 mm.
  • With integrated scaffold bracket.
  • The device is electrically wired as standard and can optionally be upgraded with a rechargeable battery.

CUT VARIANTS

  • Straight cut, surface cut (separating cut), two-step cut
  • Miter cut, bevel cut, miter bevel cut, two-step cut with miter
  • Concave cut, cuts for window reveals
For slope cutting cuts (wedges) and rafter cuts, switch to our professional polystyrene cutters Alucutter Profi, Premium and Champion Cutter


EQUIPMENT



Integrated limit stop rider


A small detail, but important in practice: With the limit stop rider rapid and precise repeat cuts can be implemented.


Scaffold support fixture


The scaffold support fi xture enables fast fixing of the foam cutter. On the scaffold: Place on – tighten skrews – ready.


Footswitch


The device can thus be operated both with the push-button in the cutting bracket and by means of a footswitch.


Stand


The stand is set up with just one hand.


Optionally with battery


The device is electrically wired, but can also be operated with a battery.



AREAS OF APPLICATION



  • wall insulation
  • flat- and pitched roof insulation
  • in between rafter insulation

ADVANTAGES



  • Thanks to its aluminum construction, the Styrofoam cutter is lightweight and corrosion resistant.
  • Generous lateral support surface for more stability when cutting larger rigid foam boards.
  • Powerful 200 watt transformer
  • All guide rails are ball-bearing, for a smooth cut through hard foam.

EQUIPMENT


Integrated limit stop rider

A small detail, but important in practice: With the limit stop rider rapid and precise repeat cuts can be implemented.

Scaffold support fixture

The scaffold support fi xture enables fast fixing of the foam cutter. On the scaffold: Place on - tighten skrews - ready.

Footswitch

The device can thus be operated both with the push-button in the cutting bracket and by means of a footswitch.

Stand

The stand is set up with just one hand.

Optionally with battery

The device is electrically wired, but can also be operated with a battery.


AREAS OF APPLICATION

  • wall insulation
  • flat- and pitched roof insulation
  • in between rafter insulation

ADVANTAGES

  • Thanks to its aluminum construction, the Styrofoam cutter is lightweight and corrosion resistant.
  • Generous lateral support surface for more stability when cutting larger rigid foam boards.
  • Powerful 200 watt transformer
  • All guide rails are ball-bearing, for a smooth cut through hard foam.

TECHNICAL DATA



cut length1.350 mm
cut depth330 mm
slab support surface 1.000 mm
miter (strap)adjustable 0-45 degrees
rulermillimeter graduation, adjustable with stop tab
standintegrated, no height and width adjustment possible.
Transformer and / or battery with thermo-protection
220 – 230 V / 50-60 Hz / 37 V, 160 VA / IP 68. Absolutely waterproof. Upgradeable to the battery operation.
plugConnection to the transformer via splash-proof XLR industrial plug
frameWelded and powder-coated aluminum
strapPowder-coated aluminum with ball-bearing guide
weight14 kg
dimension95 mm x 370 mm x 1.720 mm

TECHNICAL DATA

cut length1.350 mm
cut depth330 mm
slab support surface 1.000 mm
miter (strap)adjustable 0-45 degrees
rulermillimeter graduation, adjustable with stop tab
standintegrated, no height and width adjustment possible.
Transformer and / or battery with thermo-protection 220 – 230 V / 50-60 Hz / 37 V, 160 VA / IP 68. Absolutely waterproof. Upgradeable to the battery operation.
plugConnection to the transformer via splash-proof XLR industrial plug
frameWelded and powder-coated aluminum
strapPowder-coated aluminum with ball-bearing guide
weight14 kg
dimension95 mm x 370 mm x 1.720 mm

HOT WIRE CUTTER: ACCESSORIES AND SYSTEM PRODUCTS

Accessories


optional accessories, transport cases, foot switches and spare parts.

more about the product

Consumables


The hot wire foam cutter is equipped with a special corrosion- and heat-resistant conductor wire, made of a nickel-chromium-copper alloy.

more about the product

Complementary products


The Styrocutter – a hand-held foam cutter with a blade, is the perfect complement to the large hot wire foam cutters and ideal for detailed work.

more about the product

Similar products


The Alucutter Profi – our bestseller among the professional hot wire foam cutting machines.

more about the product

HOT WIRE CUTTER: ACCESSORIES AND SYSTEM PRODUCTS

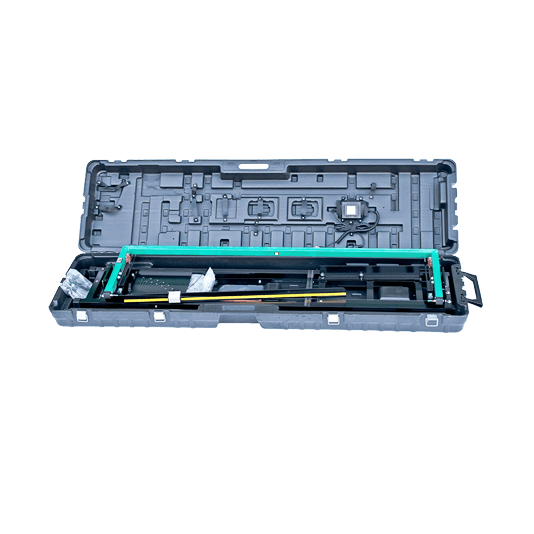

Transportkoffer für Hartschaumschneider von probateam
Accessories

optional accessories, transport cases, foot switches and spare parts.

more about the product
Consumables

The hot wire foam cutter is equipped with a special corrosion- and heat-resistant conductor wire, made of a nickel-chromium-copper alloy.

more about the product
Complementary products

The Styrocutter – a hand-held foam cutter with a blade, is the perfect complement to the large hot wire foam cutters and ideal for detailed work.

more about the product
Similar products

The Alucutter Profi – our bestseller among the professional hot wire foam cutting machines.

more about the product
